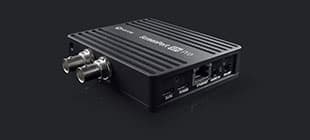

ScreenPort SDI Pro Camera to cloud with SDI metadata

Camera to cloud
with metadata

Shooting in a remote location often requires live stream or proxy media sharing to provide efficient control over the production process. ScreenPort SDI Pro delivers both and much more.

Operation

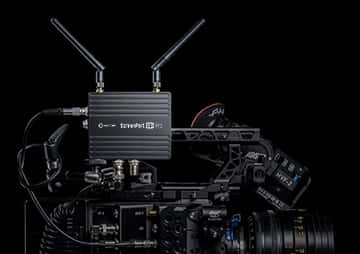

Standalone mode

Using industry-standard power connectors and rugged metal enclosure, ScreenPort SDI Pro was designed to be mounted on the camera to capture video, audio and metadata from SDI output and stream it over the local network to multiple clients. If there is no Wi-Fi available on the set, ScreenPort device can be switched to Access Point mode to create its own wireless network.

Operation

Host device mode

When connected to an iOS device, ScreenPort SDI Pro provides ultra-low latency streaming over the internet and proxy media upload to QTAKE Cloud project to make the recorded content instantly available to remote collaborators. Using camera SDI flags, the whole process of recording and cloud sharing can be automated and doesn’t require extra person to handle operation.

ScreenPort SDI Pro Host device mode ScreenPort SDI Pro Standalone mode

Features

Local Streaming

Using wired or wireless network connection, ScreenPort SDI Pro streams ultra-low latency signal from camera to multiple on-set clients.

Remote Streaming

Secure stream with embedded metadata can be extended to remote collaborators using QTAKE Cloud platform. *Requires an iOS device.

SDI Auto-Record

ScreenPort SDI Pro detects record flag embedded into SDI signal to provide automatic proxy media recording. *Requires an iOS device.

SDI Metadata Capture

In addition to audio and video, ScreenPort SDI Pro captures important camera metadata, such as timecode, filename and lens metadata.

Access Point Mode

If there is no Wi-Fi infrastructure available, built-in Access Point mode can be used for standalone operation connecting up to 8 clients.

Powered by Camera

Lemo connectors provide convenient power supply directly from the camera, without the need for additional battery source.

Camera to Cloud

Thanks to auto-recording and metadata capture, ScreenPort SDI Pro can be used for entirely remote workflow. *Requires an iOS device.

Rugged Metal Case

ScreenPort SDI Pro features black anodized aluminum case and a standard 1/4”-20 thread for easy mounting and heavy-duty workloads.

Use Case

Independent Script Supervisor

One of the most important roles on set of any film or tv production is the Script Supervisor, person responsible for continuity, slating, eyelines and many other tasks, seeking coherence between the shots. Using ScreenPort SDI Pro, supervisors can receive wireless feed from the camera to their personal devices, making them independent of the video village. In addition to audio and video, stream from ScreenPort contains timecode, filename and other metadata, adding valuable info and screenshots to their reports.

Use Case

Video Village in the Cloud

When paired with an iOS device, ScreenPort SDI Pro turns into unmatched video collaboration tool. Using QTAKE Monitor app, live streaming can be extended to internet, bringing on-set monitoring to remote clients. Additionally, automatic recording and client-side playback provide truly remote video village experience. All captured assets include camera metadata and allow users to add their own clip-based and frame-based notes, collecting all information in the QTAKE Cloud, ready to be pushed to postproduction.

Use Case

Unscripted Production

Documentaries, interviews and other non-fiction productions now have an amazing tool for live monitoring and instant review, whether used locally or over the internet. With a single iPad, filmmakers can monitor up to 9 cameras at the same time to check the framing, exposure, eyelines or any other aspect of the video production. Using built-in scopes, 3D LUTs and other effects, ScreenPort SDI Pro can replace expensive and heavy equipment and offer the most comprehensive toolset in a most portable way.

Use Case

Small or No Crew

ScreenPort SDI Pro is a perfect solution for small projects that have no space and no budget for video assist rig and on-set monitors. In standalone mode, ScreenPort device can create Wi-Fi network and stream live camera signal to personal devices. When connected to iOS device it can automatically record all takes with slates and annotations to provide efficient clip browsing for instant playback. Using QTAKE Cloud, recorded clips can be automatically synced with editorial for the fastest possible roundtrip.

Tech specs

    Video Input / Output
  • 3G-SDI
  • 3G-SDI loop-through
    Audio Input
  • 3.5mm unbalanced stereo / balanced mono
    Data Ports
  • Ethernet
  • Wi-Fi (2.4/5.0 GHz, 802.11 a/b/g/n/ac)
  • USB-C
    Power
  • USB-C Input 15W (5VDC/3A)
  • LEMO 2-pin Input/Output 18W (6-18VDC)
    Physical
  • 111 x 108 x 23 mm (4,37″ x 4,25″ x 0,91″)
  • 240 g (0.53 lb)
  • 1/4"-20 mounting hole
  • 4x M2.5 mounting holes
    Bitrate
  • CBR or VBR
  • Adjustable from 1Mbps to 40Mbps
    Encoder
  • H.264
  • HEVC
    Control
  • Software control over USB-C or network
    Operating Frequency
  • 2400 - 2483.5 MHz
  • 5150 - 5850 MHz
    Max RF Output Power
  • < 20dBm EIRP
    What's in the Box
  • ScreenPort SDI Pro device
  • Two dual-band Wi-Fi antennas
  • Power adapter with international plugs
  • LEMO to LEMO power cable
  • D-Tap to LEMO power cable
  • SDI to SDI video cable
  • USB-C to USB-C power & data cable
  • USB-C to Lightning power & data cable
  • Protective hard case with foam insert
    Upgrades
  • Free firmware updates
  • In-app purchases

Choose the right model

Current offer consists of three ScreenPort SDI models, differentiated by their features, build and price. Following is a list of the most important advantages of each model to help you choose correct device for your use case.

ScreenPort SDI Pro
ScreenPort SDI Pro
  • High-performance 2.4 / 5.0 GHz Wi-Fi
  • Streaming to up to 8 clients
  • Additional analog audio input
  • SD, HD, and 3G-SDI video capture
  • Camera mountable metal case
  • Camera powered
  • MSRP $1,699 / 1 550 €
ScreenPort SDI+
ScreenPort SDI+
  • High-performance 2.4 / 5.0 GHz Wi-Fi
  • Streaming to up to 8 clients
  • Additional analog audio input
  • SD, HD, and 3G-SDI video capture
  • Lightweight case
  • Battery powered
  • MSRP $1,399 / 1 270 €
ScreenPort SDI
ScreenPort SDI
  • 2.4 GHz Wi-Fi only
  • Streaming to a single client
  • SDI audio capture only
  • HD and 3G-SDI video capture
  • Lightweight case
  • Battery powered
  • MSRP $899 / 819 €
